VT98334R Active Video Balun Receiver, UTP Balun, CAT-5 for CCTV
Active Video Balun Receiver


Active Video Balun Receiver
Our Price: $29.99


Free Shipping
Product Code: VT98334R



The following items are included:
Description

The VT98334R is an active video balun reciever, also known as an active UTP balun reciever. Active (amplified) video baluns can be used to transmit video signal from security cameras using unshielded twisted pair cable such as CAT-5 cable instead of coax cable, such as RG59. The VT98334R active balun receiver can be paired with a passive video balun such as our to create an amplified video signal that can transmit up to 2000 feet using CAT5. When the VT98334R is paired with the VT98334T active video balun transmitter, the effective distance increases to 4000 feet for color CCTV cameras and 5000 feet for black & white cameras. The VT98334R product is NOT a UTP balun pair. This device requires power. The DC power supply is included when you purchase this product from CCTV Camera Pros.

Note: the VT98334R and VT98334T can be purchased together here in the AVB1 active balun bundle.

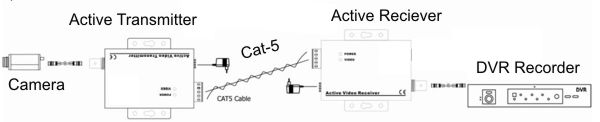

UTP Balun Installation Diagram

The below diagram illustrates how the active balun reciever is used in conjunction with the VT98334T active balun transmitter using CAT-5 cable instead of coaxial cable for a CCTV camera installation.


Active Balun Installation Diagram

Active UTP Video Balun Features

  • Balun Type: UTP Active Transceiver Module
  • Video Transceiver: 1 Port
  • Transmission Distance: up to 5000 feet when used with active transmitter and CAT5 cable
  • Transmission Distance: up to 2000 feet when used with passive video balun transmitter and CAT5 cable
  • Power In: 12V DC (power supply included)
  • Video In/Out: BNC male
  • Video Format: RS 170, NTSC, PAL, CCIR or SECAM
  • Operation Frequency Range: DC to 10 MHz
  • Twisted Pair Connector: 2 pin connector
  • Common Mode Rejection: 70 dB
  • Wire Type Compatibility: STP / UTP Cat 2, 3, 4, 5e, 6; 12~24 AWG or Heavier
  • Cost savings by replacing costly coaxial cable
  • Neater wiring eliminates bulky cables

Video Balun Specification

Active Balun Spec
Download the technical spec for this product here.
