The VDS-1632HD is 32 channel CCTV video distribution box that works with HD security cameras - AHD HD-TVI HDCVI and analog CCTV cameras. This video distributor 16 BNC video inputs and 32 BNC outputs. This is an excellent device for surveillance video applications that require multiple security cameras to be connected to multiple monitors, video processors, or DVRs. The VDS-1632HD is enclosed in a 1U rackmount case and the 12V DC power supply is included.

Installers can use 75Ohm RG59 cable or RG6 cable with this product.

This product is made for use with HDCVI, HD-TVI, AHD cameras and does NOT work with HD-SDI security cameras. CCTV Camera Pros also supplies splitters for HD-SDI type cameras. You can find HD-SDI video splitters here.

Features

• HDCVI, AHD, and HD-TVI Cameras Supported
• Analog CCTV Cameras Supported (CVBS)
• Works with 720p and 1080p HD Cameras
• Works with NTSC and PAL Analog Cameras
• D1 and 960H Analog Resolutions Supported
• 16 BNC Video Inputs - 75 Ohm
• 32 BNC Video Outputs - 75 Ohm
• Built-in power surge protection / TVS
• 12V DC 1 Amp Power Supply Included
• Power Consuption: 700mA
• Dimensions: 483 x 105.5 x 44mm / 19 x 4.1 x 1.7 inches
• Weight: 2050 Grams / 4.5 Pounds

Installation

The VDS-1632 is easy to install. Here is now it works.

1. Each BNC video input has two BNC video outputs.
2. Each channel can be used for any type HD security camera (AHD, HD-TVI, HDCVI) or analog CCTV camera.

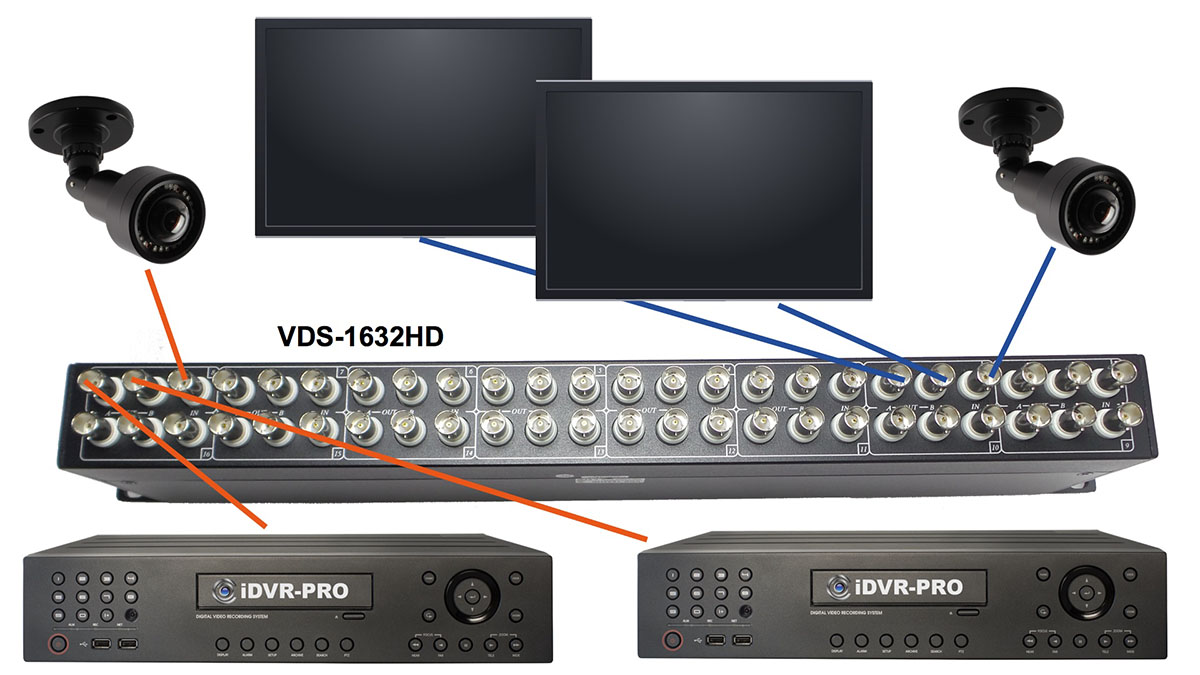

3. In the above diagram, the security camera on the left is connected to a video input using RG59 coax cable with a BNC connector end.
4. The two video outputs from the camera on the left are connected to a DVR.
5. The security camera on the right in connected to another video input channel on the video distribution box - using RG59 coax cable.
6. The two outputs from that channel are each connected to a video display monitor.
7. The VDS-1632 is powered using the 12V DC power supply that is included.
8. The VDS-1632 can be desktop or rack mounted.

**Please note that analog CCTV cameras can be directly connected to analog CCTV monitors or the analog RCA input of standard TVs. However, HD cameras require a BNC to HDMI converter to be connected to the HDMI input of a TV or monitor. HD security cameras CAN NOT connect directly to the analog video input of a TV. Here are some converters that work with HD security cameras.

• AHD to HDMI video converter
• HD-TVI to HDMI video converter
• HDCVI to HDMI video converter

Product Specification
