The VDS-104HD is a one to four channel CCTV video distribution box that is compatible with analog CCTV cameras and HD security cameras - HD-TVI, AHD, and HDCVI. This video splitter has one BNC video input and distributes video from that input to 4 BNC outputs. This is an excellent device for surveillance video applications that require a security camera to be connected to multiple monitors or DVRs. Output channel four has a video + data option that allows a DVR to control the OSD (On Screen Display) of some HD security cameras. The 12V DC power supply is included with this product.

This product is made for use with HD-TVI, AHD, and HDCVI cameras and does NOT work with HD-SDI security cameras. CCTV Camera Pros also supplies splitters for HD-SDI type cameras. You can find HD-SDI video splitters here.

Features

• Supports "HD Over Coax" Security Cameras - HD-TVI, AHD, and HDCVI
• Supports Analog CCTV cameras
• Works with 720p and 1080p HD cameras
• Works with 960H and D1 Resolution CCTV cameras
• Works with NTSC and PAL video standards
• 1 BNC Video Input - 75 Ohm
• 4 BNC Video Outputs - 75 Ohm
• Built-in TVS Surge Protection / Transient-Voltage-Suppression diode
• DC Power Supply Included
• 110 mA Power Consumption
• Dimensions in millimeters - 138 x 86 x 30

Installation

Installing the VDS-104HD is easy. Here is how it works.

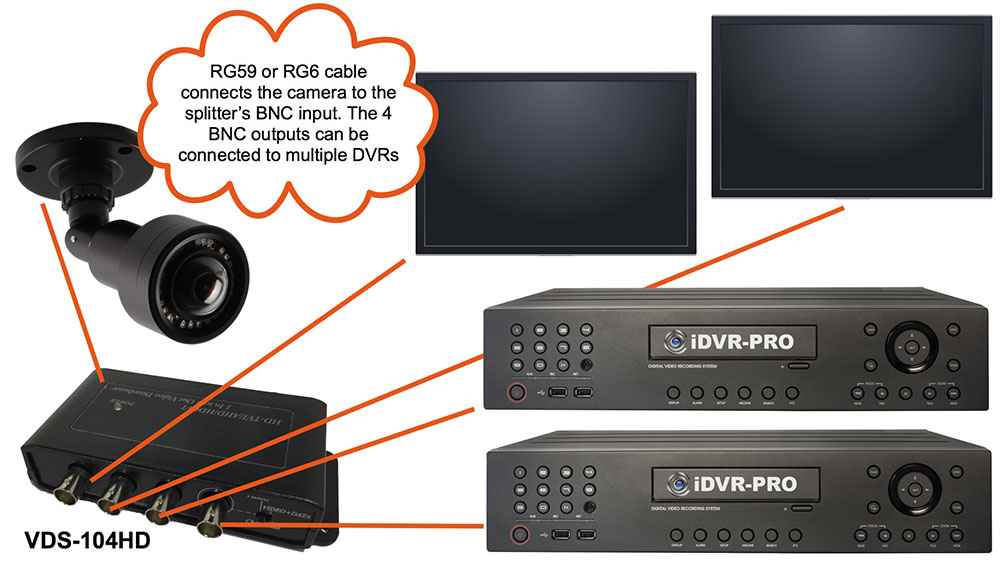

1. RG59 Coax cable with a BNC connector or pre-made security camera cables are used to wire the security camera to the BNC input of the VDS-104HD video distributor.
2. Each BNC video output can be wired to a surveillance DVR or TV monitor.

Please note that analog CCTV cameras can be directly connected to analog CCTV monitors or the analog RCA input of standard TVs. HD cameras require a BNC to HDMI converter to be connected to the HDMI input of a TV or monitor. HD security cameras CAN NOT connect directly to the analog video input of a TV. Here are some converters that work with HD security cameras.

• AHD to HDMI video converter
• HD-TVI to HDMI video converter
• HDCVI to HDMI video converter

Product Specification
