RJ45 Balun | Power, Video, Audio over CAT-5

Home > Video Baluns >

RJ45 Balun with Audio, Video and Power over Cat-5

RJ45 Balun - Power, Video, Audio

Comes as a pair with injector & splitter.

Our Price: $14.99

Product Code: VB-2VPA

Description

The VB-2VPA is a RJ45 balun pair that allows an installer to use a single Cat-5 cable to run a CCTV video signal, surveillance audio signal and power to a security camera and audio surveillance microphone. The VB-2VPA is sold as a set that included both the injector and splitter ends. Although this balun can also run audio, many installers do use it to run just video and power.

RJ45 Balun Installation

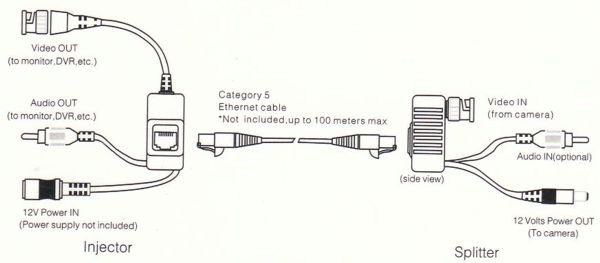

Please refer to the below diagram to understand how to use this RJ-45 audio, video, power balun in a security camera system installation. Your installer will simply connect a standard CAT-5 cable with the RJ-45 ends to the injector and splitter. Note: the audio connection is not require to be used. This balun can be used to run just video and power in which case the audio ends are left unattached.

RJ-45 Balun Installation

Features

Comes as a Pair (Injector & Splitter included)
Up to 300 Feet Transmission Distance using Cat-5
Cost savings by replacing costly coaxial cable
Convenient Plug and Play Installation using premade Cat-5 Cables
Runs Power, Video, and Audio over a single CAT5
Can be used to run just Video & power also

Average Customer Review: Average Customer Review: 5 of 5

5 of 5 Total Reviews: 1 Write a review.

4 of 4 people found the following review helpful:

Nice clean signal and easy to use	January 14, 2009
Reviewer: Scott from Portland, ME United States

The design of this video balun nicely supports an installation in an existing single gang wall plate. The 12VDC power supply gave a nice tight fit and overall the manufacturing quality appears excellent. We're getting ready for another install; my recommendation to the client is to go all CAT5 and use these baluns for the job.
