AVB1 Active Balun, Power Transmitter / Receiver, UTP CAT5, CCTV Video
Active Balun


Active Balun for CCTV Video
Our Price: $49.99


Free Shipping
Product Code: BALUN-AVB1



The following items are included:
Description

The AVB1 active balun system is a UTP video wiring solution for CCTV cameras that can achieve distances up to 5000 feet using CAT-5 cable. The AVB1 includes an active (powered) balun transmitter and active receiver. By using a powered video balun on both ends of a UTP / STP / CAT-5 cable run, distances of up to 4000 feet for color cameras and 5000 feet for black and white cameras can be achieved. CCTV Camera Pros includes two 12V DC power supplies with these kits.

Active Balun Features

  • Comes as a Pair (Transmitter & Receiver included)
  • Transmit CCTV video up to 5000 Feet using Cat5 or other UTP (unshielded twisted pair) or STP cable
  • Cost savings by replacing costly coaxial cable
  • Compatible with NTSC, PAL, and SECAM video standards
  • Built in Lightning Protection and Power Line Contact Protection
  • 12V DC Power Supplies Included
  • LED Power Indicator

AVB1 Specification

Active Balun Spec
Download the AVB1 specification document for technical details about this amplified UTP cable system for CCTV video

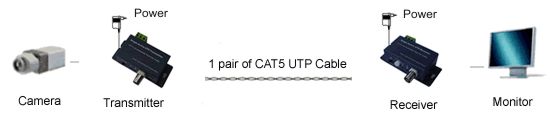

Wiring Diagram

Active Balun Wiring

The above image illustrates how to use CAT5 UTP cable and our active balun system for wiring a CCTV camera to a monitor or surveillance DVR. Please contact us if you have questions on how to use video baluns with your CCTV system.

Active Balun Video Demo

The below video demonstrates how to install the AVB1 with CAT-5 to connect a CCTV camera to a surveillance DVR or BNC monitor.
