Analog / HD Surveillance DVR - CCTV Hybrid

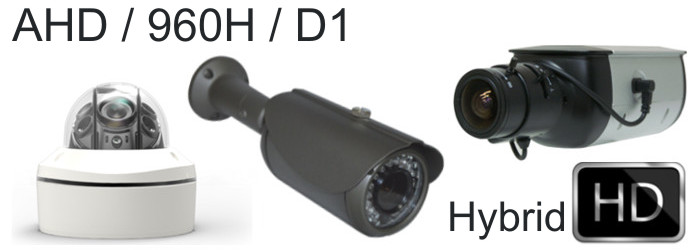

The latest iDVR-E are SD / HD CCTV hybrid. This means that both traditional analog CCTV cameras and AHD high definition CCTV cameras can be used.
Here is how it works.
- Originally, CCTV cameras supported D1 resolution which is 704 x 480 pixels.
- Then, 960H CCTV cameras were introduced which support 960 x 480 resolution (a wider format CCTV).
- In 2014, AHD cameras (analog high definition), also known as HD CCTV, was introduced which supports 720p resolution (1280 x 720).
- In 2015, full HD 1080p AHD cameras will be available.
- All of these CCTV video formats work using the same RG59 coax cable to run video from the camera to the DVR. However, the video encoding is different between traditional CCTV (D1 and 960H, also known as standard definition - SD) and AHD.
- This iDVR-E works with both traditional CCTV and AHD cameras. Users can also mix CCTV and AHD cameras on the same recorder (hybrid).
- Important! If both camera types will be used, they need to be grouped in pairs of 2 by type.
- For example, you can have 2 SD cameras on channels 1 and 2, and 2 AHD cameras on channels 3 and 4.
- You can also install SD cameras on all channels or HD cameras on all channels, but again, when you mix technologies, it must be done in groups of two.
You can
learn more about what AHD is here.
The Mobile CMS app for iOS lets users view the security cameras connected to their iDVR-E and iDVR-RT16 model surveillance DVRs live from remotely over the Internet. The app works on iPhone and iPad. The pro version of the app also supports remote search and playback of surveillance video recorded to your DVR's hard drive.
Click here to learn more about the iPhone app for iDVR.

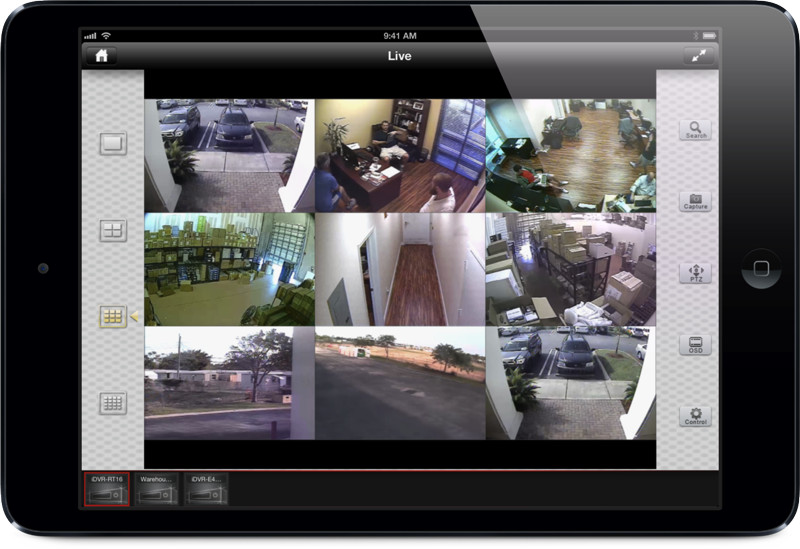

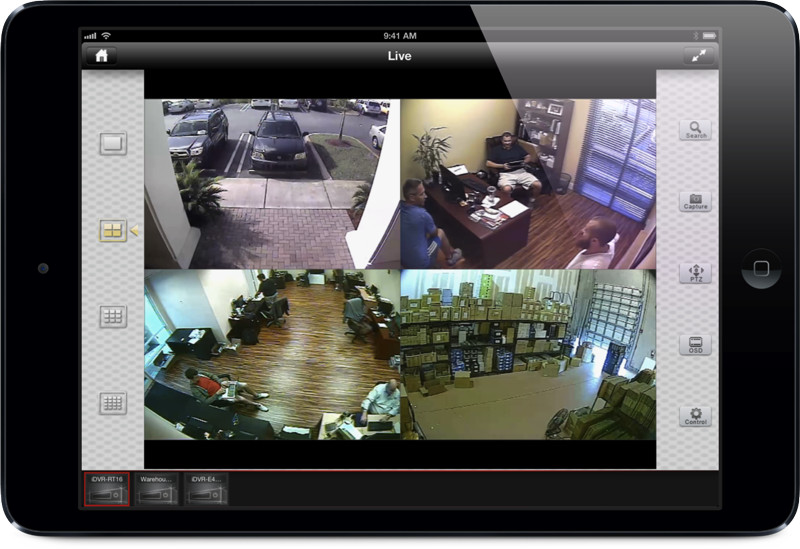

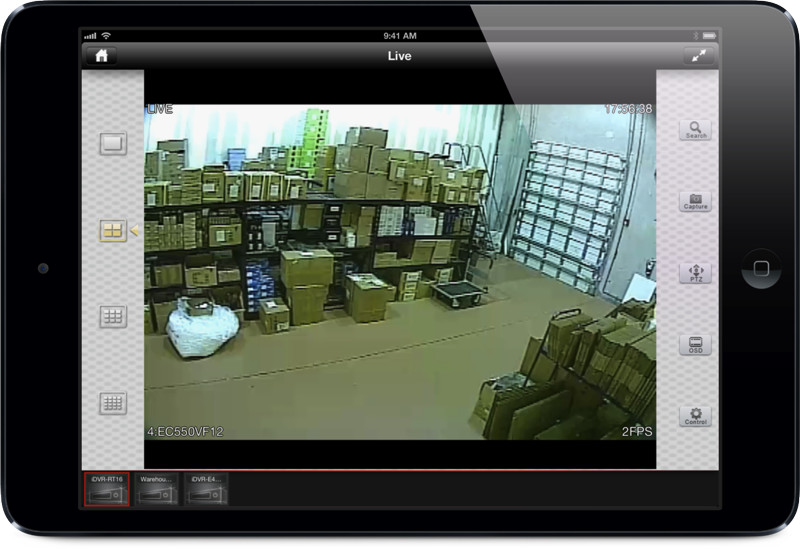

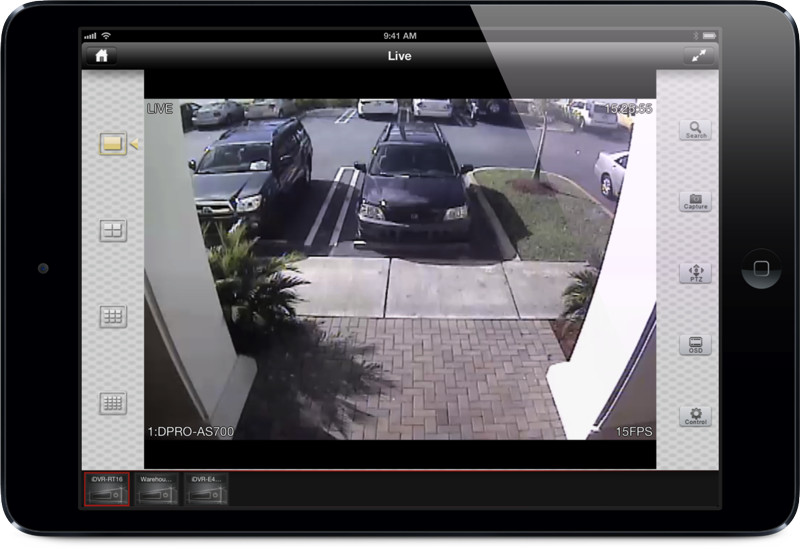

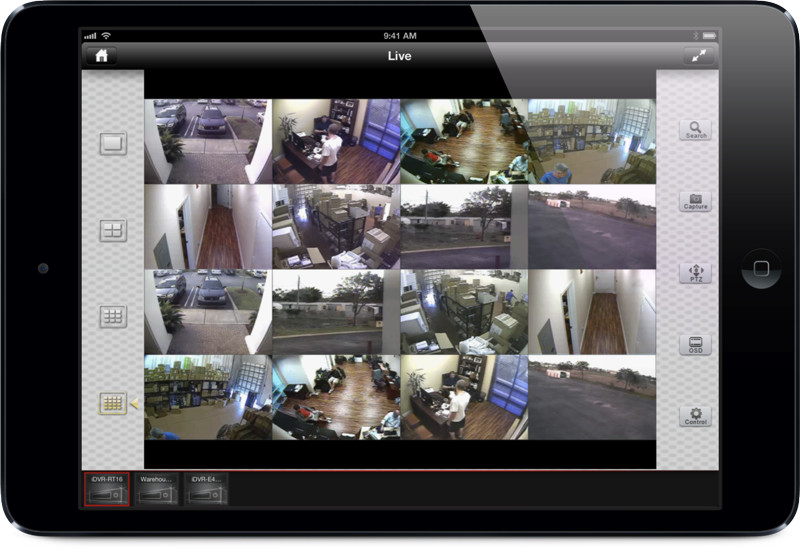

The following image gallery shows screen shots of the DVR viewer app that is included for free for use with the iDVR E series video surveillance recorders from CCTV Camera Pros. NEW! An HD iPad optimized app has now been released for the iDVR-E4, iDVR-E8, and iDVR-RT16 recorders.
Please click on any image to see a larger view.

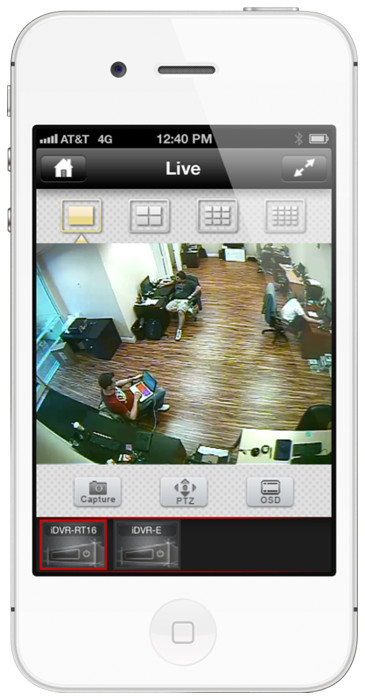

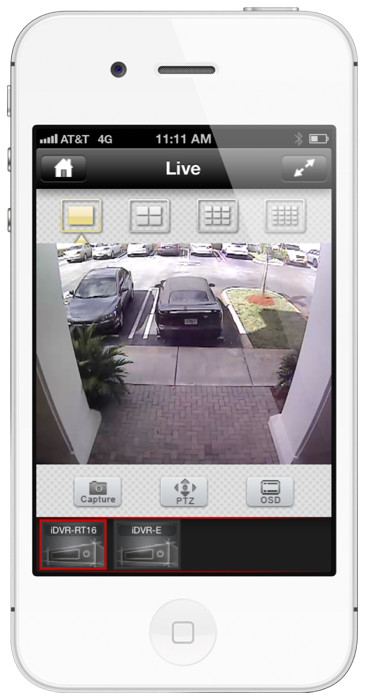

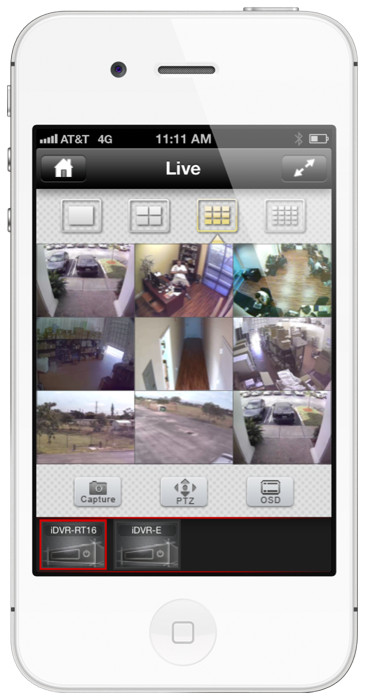

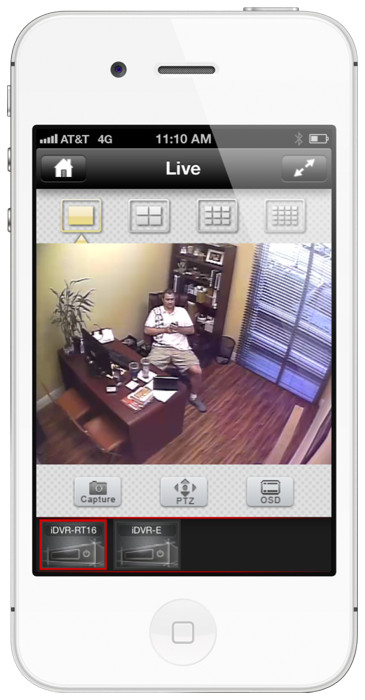

The following image gallery shows screen shots of the iPhone DVR viewer app that is included for free for with the iDVR E series video surveillance recorders from CCTV Camera Pros. Please click on any image to see a larger view. You can learn more about the iPhone security camera app for iDVR here.
Please click on any image to see a larger view.

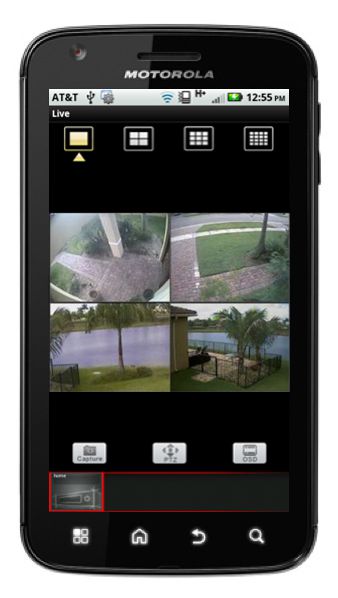

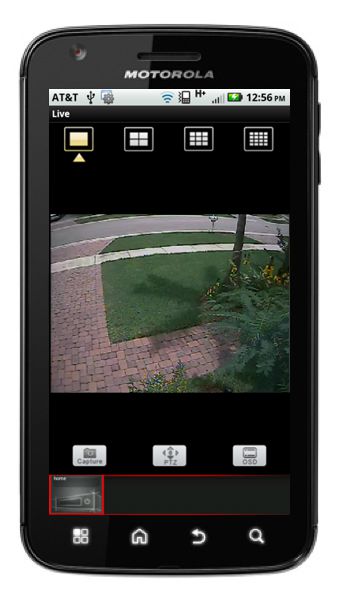

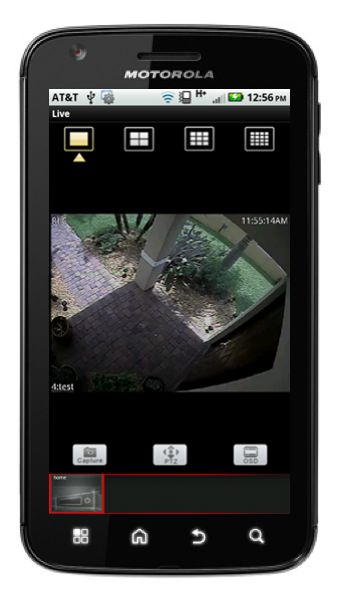

The following image gallery shows screen shots of the Android DVR viewer app that is included for free for with the iDVR E series video surveillance recorders from CCTV Camera Pros. Please click on any image to see a larger view of this home surveillance system monitored from an Android cell phone. Click here to learn more about the Android camera viewer app for iDVR.
Please click on any image to see a larger view.

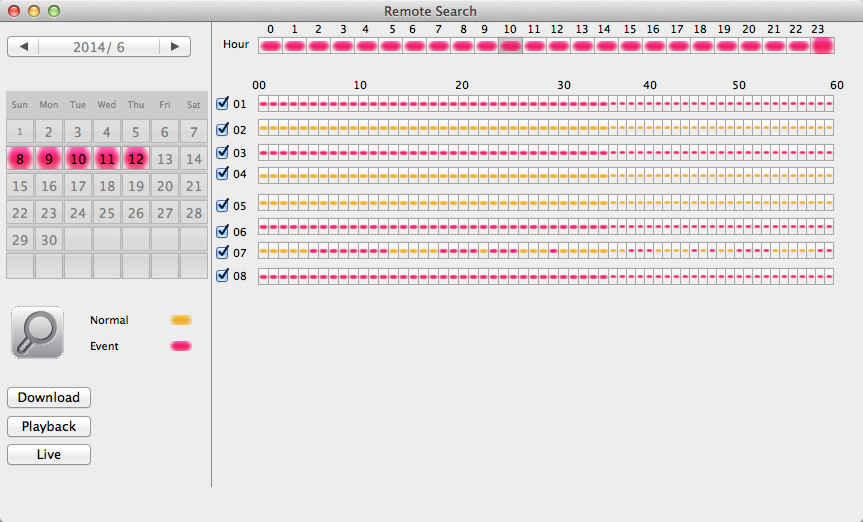

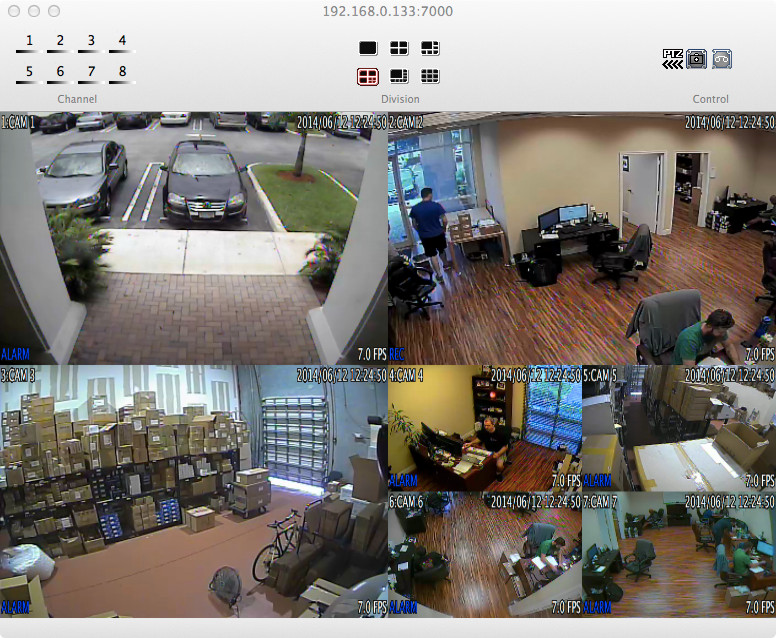

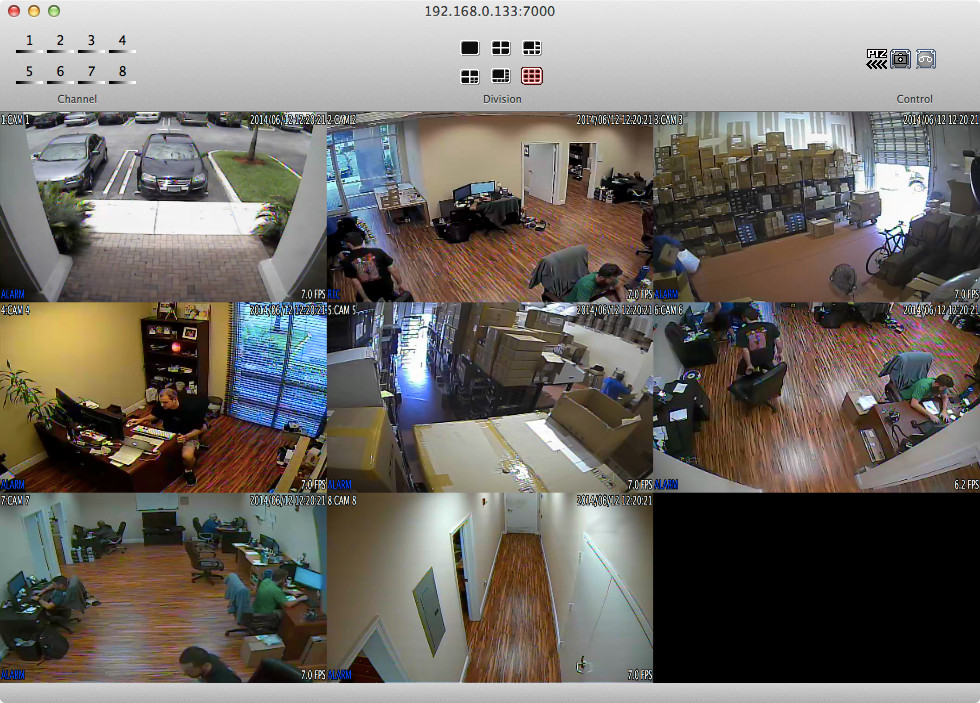

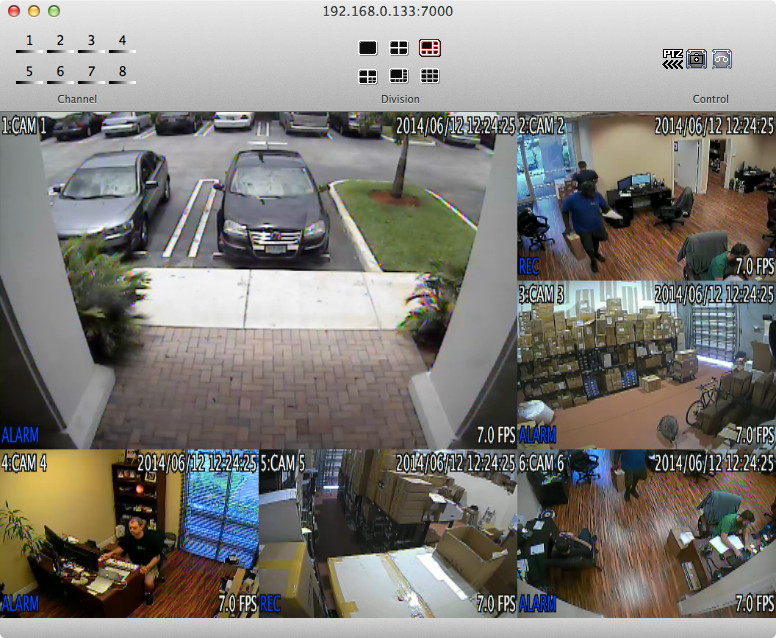

iDVR-E and iDVR-RT16 model DVRs are Mac compatible. The following image gallery shows screen shots of the Mac DVR viewer application that is included with iDVR E and RT series video surveillance recorders from CCTV Camera Pros. Please click on any image to see a larger view. You can learn more about the Mac surveillance software here.
Please click on any image to see a larger view.

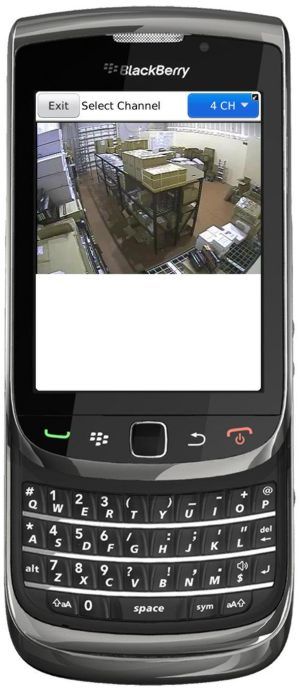

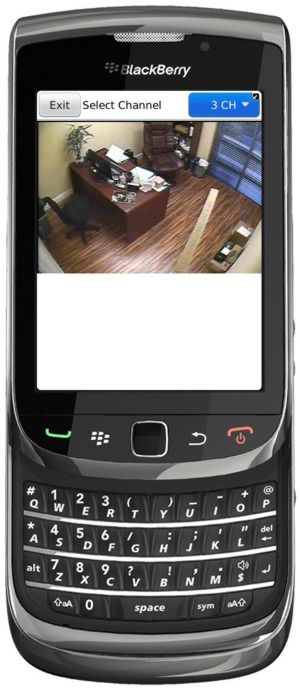

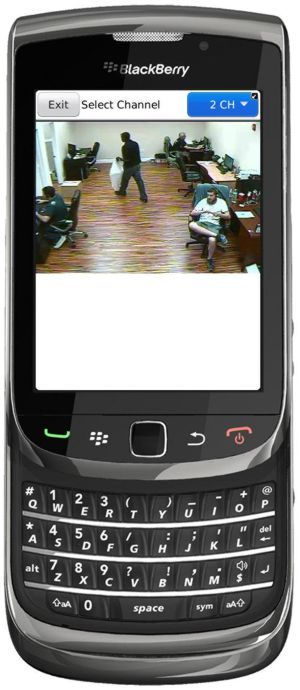

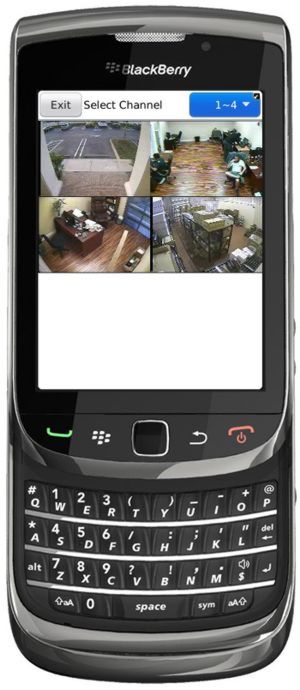

The following image gallery shows screen shots of the Blackberry DVR viewer app that is included for free for with the iDVR E series video surveillance recorders from CCTV Camera Pros. Please click on any image to see a larger view.
Please click on any image to see a larger view.

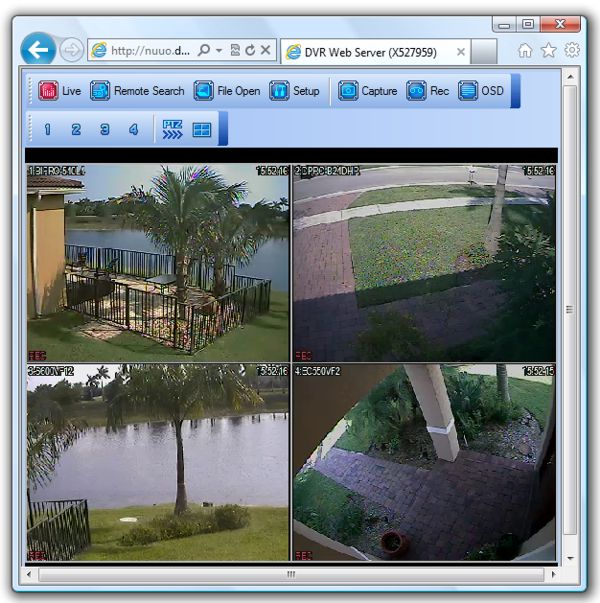

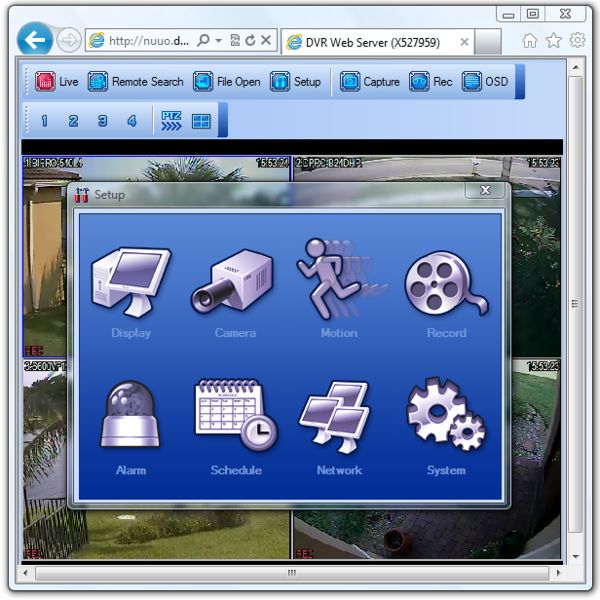

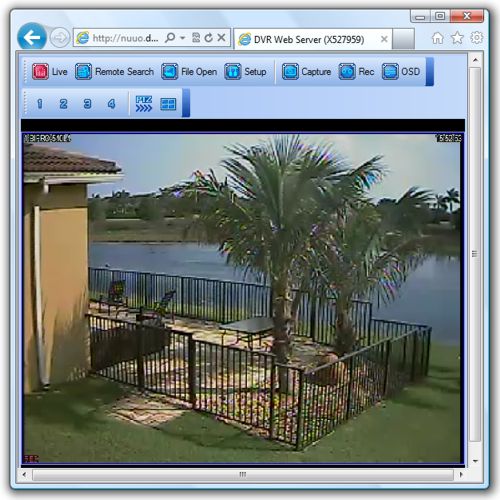

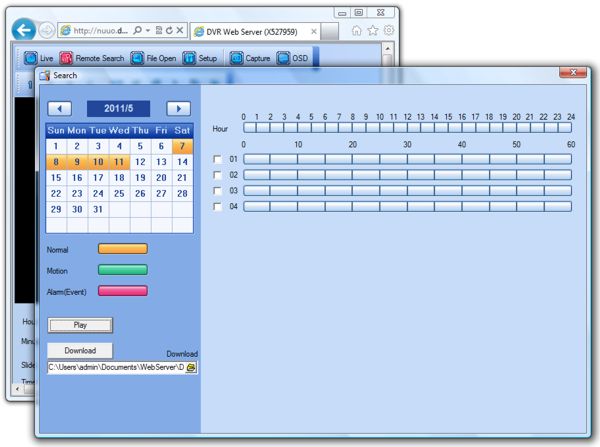

The following image gallery shows screen shots of the remote web browser access to the iDVR E series video surveillance recorders from CCTV Camera Pros using a Windows PC. Please click on any image to see a larger view.
Please click on any image to see a larger view.

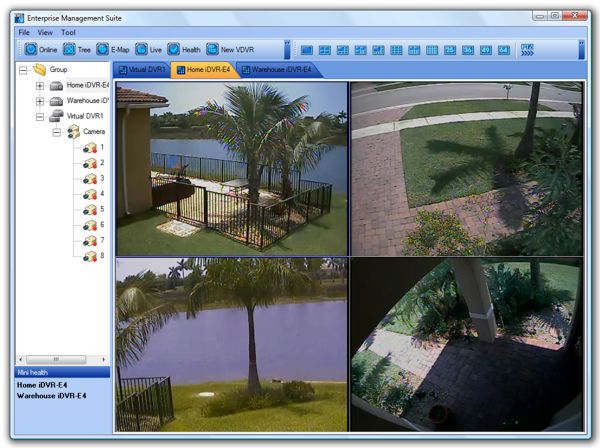

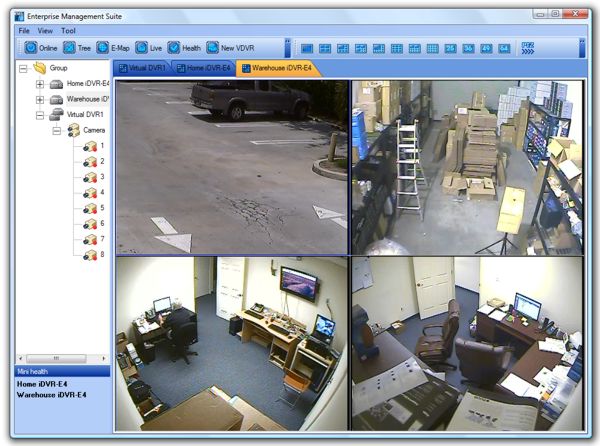

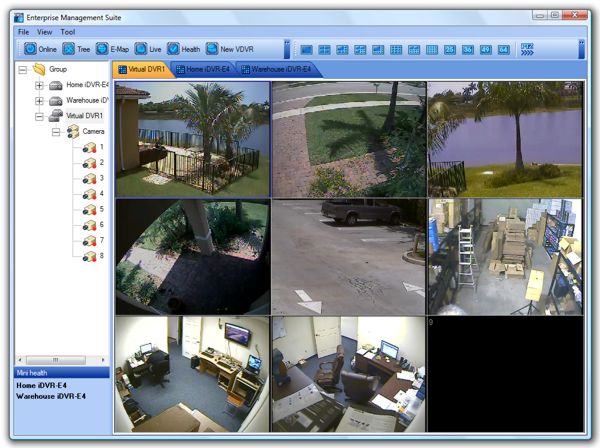

The following image gallery shows screen shots of the central management software that is included with the iDVR surveillance DVRs. This software application is called EMS (Enterprise Management Software) and can be
downloaded here. The CMS software allows users to manage and view multiple DVRs from one central management software interface. Users can combine cameras from multiple locations / DVRs onto a single screen that displays up to 64 cameras.
Please click on any image to see a larger view.
Most cable and DSL Internet connections use a dynamic IP address. This can present a challenge for remotely accessing your DVR to check on your cameras. All iDVRs have built in dynamic DNS support. This means that your iDVR will be assigned a domain / host name such as myidvr.hostname.com for you to use when you configure remote access using any of the client apps. When setup, if your ISP changes the IP address of the Internet connection where your DVR is located, the configuration for your apps do not need to change. This is because the assigned hostname will always be updated to point to the correct IP address of your Internet modem.
DDNS setup is simple on iDVR surveillance DVRs and if you need help, CCTV Camera Pros gives lifetime free technical support on all products that we supply.
Below is a sample of demo videos that we have created using the iDVR. Please click here to view our complete video gallery that contains all of our latest videos.
If you would like to be notified when CCTV Camera Pros creates iDVR videos, please
click to subscribe to our YouTube channel.
Please click here for the technical support page created by CCTV Camera Pros following surveillance DVR models: iDVR-E4, iDVR-E8, iDVR-E16, and iDVR-RT16. CCTV Camera Pros strives to provide the best technical support possible for our customers. If something is missing on that page or you need additional help, please let us know by submitting your questions below.
Did you know that the instructions, articles, and videos on this page are available in CCTV Camera Pros mobile app? Customers find this handy to have when they are configuring a DVR on-site and want to research solutions on the go. Please use the below links to download for free.
Please use this discussion area to ask any questions that you have or open up a support request with our team.
Please use this form to request demo login information.
|
The iDVR (Internet DVR) from CCTV Camera Pros is a CCTV based video surveillance DVR that provides the best remote Internet viewing applications for mobile cell phones and personal computers. iDVR-E model DVRs support CCTV and HD security cameras (AHD CCTV). The following computer and mobile devices are supported by the iDVR for remote camera viewing: iPhone, iPad, Android, Windows, and Mac computers. There are free apps available to download for iPhone, Android, and MAC DVR viewing. In addition users can also access the iDVR from a Windows computer using Internet Explorer or with the included CMS software (central monitoring software). All iDVRs have
