The SYSPRO-4D960 is a 960H security camera system with 4 channel iDVR-PRO CCTV DVR, 4 IR dome surveillance cameras (indoor), and 4 pre-made Siamese coax cables. The cameras that are included in this system are the DPRO-L36W indoor infrared dome camera with 700TVL / 960H resolution. Using a 960H resolution camera with the 960H iDVR-PRO allows users to take advantage of the 960 x 480 widescreen format that this DVR supports. The DPRO-L36W has a 3.6mm lens which captures a 90 degree field of view and the maximum effective distance of the infrared LEDs are 75 feet. Click here to view a video surveillance demo of the DPRO-L36(W) here.
The iDVR-PRO4A that is included with this system is capable of recording on all four video channels at 30 frames per second (real time recording), 120 FPS total. This is a stand alone / Linux embedded CCTV DVR. This system includes two cameras, which allows two free channels to add cameras for future expansion. If you plan on expanding your system to more than 4 cameras, you should consider upgrading to the 8 or 16 channel model DVR. You can also request a custom quote with any DVR model and number of cameras that you require.
The iDVR-PROA series of security recorders include some of the best software applications to monitor and manage these systems from iPhone, iPad, Android, Windows, and Macintosh devices. The user interface that is used to manage the DVR directly using the included mouse or wireless remote control is extremely intuitive and easy to use.
These DVRs come with a 2 year warranty and lifetime USA based technical support, both of which are provided directly from CCTV Camera Pros.
The robust features and sleek design make the iDVR-PROA series recorders a perfect choice for home, business, and government video surveillance applications.
iPhone / iPad Compatible
|
Android Compatible
|
Mac Compatible
|
|
Did you know? CCTV Camera Pros can provide a complete surveillance system quote that includes an iDVR-PRO surveillance DVR, any number of cameras, cables, connectors, power supplies, and monitors? As you have probably already seen on our website, we have 2, 4, 8, and 16 camera surveillance systems in pre-made packages. However, it is not possible for us to package up every combination and quantity of all the different camera models that we carry. So, we can also provide you with a custom quote with as many cameras as you need and a mix of any combination of camera model(s) based on your project requirements.
|
960H DVR Features
- 4 Camera Video Inputs (BNC camera inputs)
- 4 Channel Audio Microphone Inputs (RCA Audio inputs)
- Embedded Linux OS
- H.264 Codec Video Compression
- Pentaplex Function - Simultaneous Live / Record / Playback / Archive / Network
- Remote Live View via Windows, MAC, iPhone, iPad, Android, Blackberry, and Windows Mobile
- Compatible with Internet Explorer, Safari, Firefox, and Google Chrome Web Browsers
- HDMI video output with HD resolution (1080p)
- VGA video output with HD resolution (1080p)
- 120 FPS Recording at 960H Resolution (960 x 480)
- DVR Also Supports AHD and TVI HD 720P/1080P Cameras
- Real Time Recording on All Channels - 30 FPS per
- Video Outputs: 1 HDMI, 1 VGA
- 0 Alarm Inputs / 0 Alarm Outputs
- USB Flashdrive Backup, Network FTP Backup
- 1 Internal HDD Bay (SATA): Up to 6TB Supported
- 500GB Hard Drive Included & Installed
- Network Capability: Gigabit Ethernet w / LAN, DHCP, Dynamic IP & DDNS Support
- Watermarked Video & Audio for Taper Proof Security
- 5 Levels of Recording Quality (Low / Standard / High / Highest / Super)
- No RS-422/485 for PTZ Speed Dome Controls
- Email Motion & Alarm Notification
- Playback in Forward & Reverse up to 64x
- Remote PTZ Control Support
- Includes USB Mouse
- Includes Wireless Hand-held Remote Control
DPRO-L36W IR Dome Camera Features
- 1/3" Sony CCD Super HAD II
- Indoor dome camera
- Infrared video surveillance - 24 IR LEDs Rated at 82 Feet Effective Range
- High Resolution - 700 TVL / 960H Widescreen Format
- 3.6mm Fixed Auto Iris Lens
- Tri-axis mount for ceiling or wall installations
- Infrared for low light and zero light applications
- .01 LUX without IRs / 0 LUX with IRs on
- White camera base
This video demonstrates DPRO-L36(W) cameras that are included with this system.
Important Note: Click the gear icon in the lower right of the video player and select 720p resolution or 1080p resolution if available so that you can view the video in high definition.
Demo: Try Before You Buy!
|
Would you like to demo an iDVR-PRO surveillance system before you decide to purchase one? CCTV Camera Pros has a demo surveillance setup at our office using a 960H iDVR-PRO and a variety of CCTV cameras that we supply. We will supply you with login information and instructions so that you can see what the user experience is like when you remotely access an iDVR-PRO from Mac, Windows, iPhone, iPad, and Android devices. If you need support along the way, we will provide you with help.
|
iDVR-PRO surveillance DVRs are compatible with iOS. The native iDVR-PRO viewer app for iOS works with iPhone and iPad. Users can view CCTV cameras live from their iOS device. The app also supports search and playback of video surveillance footage recorded to the DVR's hard drive. Click here to see our
image gallery of the DVR viewer app for iDVR-PRO.
The following youTube video demonstrates the remote iPhone DVR viewing capability of the iDVR-PRO. The iOS app for iDVR-PRO lets users view all security cameras connected to the iDVR PRO from remotely over the Internet.
NOTE: The video conversion to YouTube degrades the quality of the video. Actual surveillance video viewed on an iPhone is better than what is seen above. Be sure to select 1080p video during playback in the YouTube player.
The above screenshot shows the iPhone app for iDVR PRO in playback mode. The user is viewing recorded video with 4 cameras on the screen. Click here to
see additional images of the iPhone app in live and playback mode.
The iDVR PRO is compatible with MAC laptops and desktops. This is one of the few CCTV DVRs available that allow users to view your surveillance cameras remotely over the Internet from a Macintosh desktop or laptop. Mac users have two options for accessing their DVR remotely: web browser access and the DVR viewer software. The iDVR PRO also support remote video playback using the MAC DVR viewer software that is included. The below screen shows the iDVR-PRO at CCTV Camera Pros West Palm Beach office being accessed from a MAC using the Chrome web browser (Safari and Firefox also supported). Please click here to
see a complete image gallery of the iDVR PRO being viewed from a Mac.
The above image shows a iDVR PRO being accessed on a Mac via the Chrome web browser. The web browser access supports single camera viewing only. Users can select which camera they want displayed via a dropdown box on the web page. The web browser view also supports accessing the DVR's configuration, PTZ camera controls, and viewing the event log.
The Mac DVR viewer software that is included with iDVR-PRO recorders lets users monitor multiple DVR locations and view up to 36 cameras per screen. The Mac software also supports remote playback of surveillance video that has been recorded on the DVR hard drive. Please click here to
see additional screenshots of the Mac software being used to monitor CCTV Camera Pros warehouse.
The Android viewer app for iDVR-PRO lets users view their security cameras on any Android mobile device from remotely over the Internet. The Android app can display 1, 4, 9, and 16 cameras on the screen. In addition to the live camera streaming, the app also has a search and playback feature which lets Android users watch surveillance video that is recorded on the DVR hard drive. Click here to
view more Android app screenshots.
The following youTube video demonstrates the remote Android remote viewing capability of the iDVR-PRO. The Android app for iDVR-PRO lets users view all security cameras connected to the iDVR PRO from remotely over the Internet. Users can also search and playback video that has been recorded to the DVR's hard drive.
NOTE: The video conversion to YouTube degrades the quality of the video. Actual surveillance video viewed on an iPhone is better than what is seen above. Be sure to select 1080p video during playback in the YouTube player.
Sample Android Images
The above image shows the Android DVR viewer app accessing the iDVR-PRO at CCTV Camera Pros office in live camera mode (4 cameras on one screen). Please click here to
see additional images of the Android app in live viewing and recorded video playback modes.
Optional Upgrades
RG59 Siamese Cable Upgrade
This DVR system includes (4) 100 foot premade Siamese coax cables that run both the video and power to the camera. These cables can not be cut. If you prefer to cut your cable runs to the exact length that you need, we offer an upgrade to a 500 foot spool of RG59 Siamese cable with all of the connectors that you will for the number of cameras included in the system.
Power Supply Box Upgrade
This system includes an individual DC power supply for each camera. You have the option to upgrade to a power supply box that you can mount near your DVR.

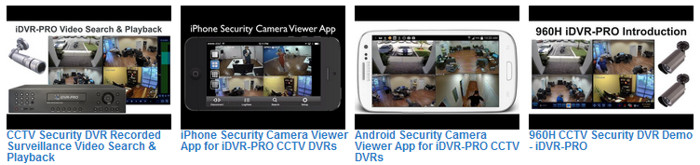

Demo Videos
Please click here to watch more
DVR security system demo videos using the iDVR-PRO 960H recorder.
Download iDVR-PRO4A Spec Sheet
Download iDVR-PRO "A" Series User Manual
